Groove cut by clamshell cold cutting machine

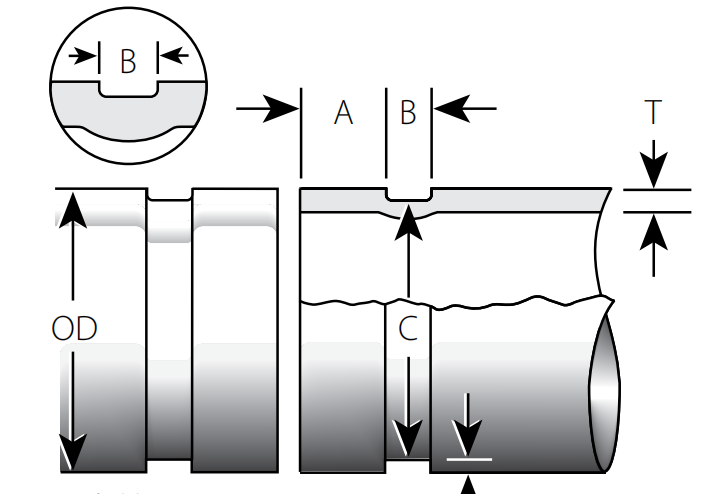

The above drawing is the groove requirement from customer. First demand from 2019.

A Taiwan piping system company, like to cut the groove for their clamp.

To cut a groove (B) on the pipe end is a easy job, but how to control the length of A and make the operation friendly is a problem.

And which type tool will use is the problem as well we faced.

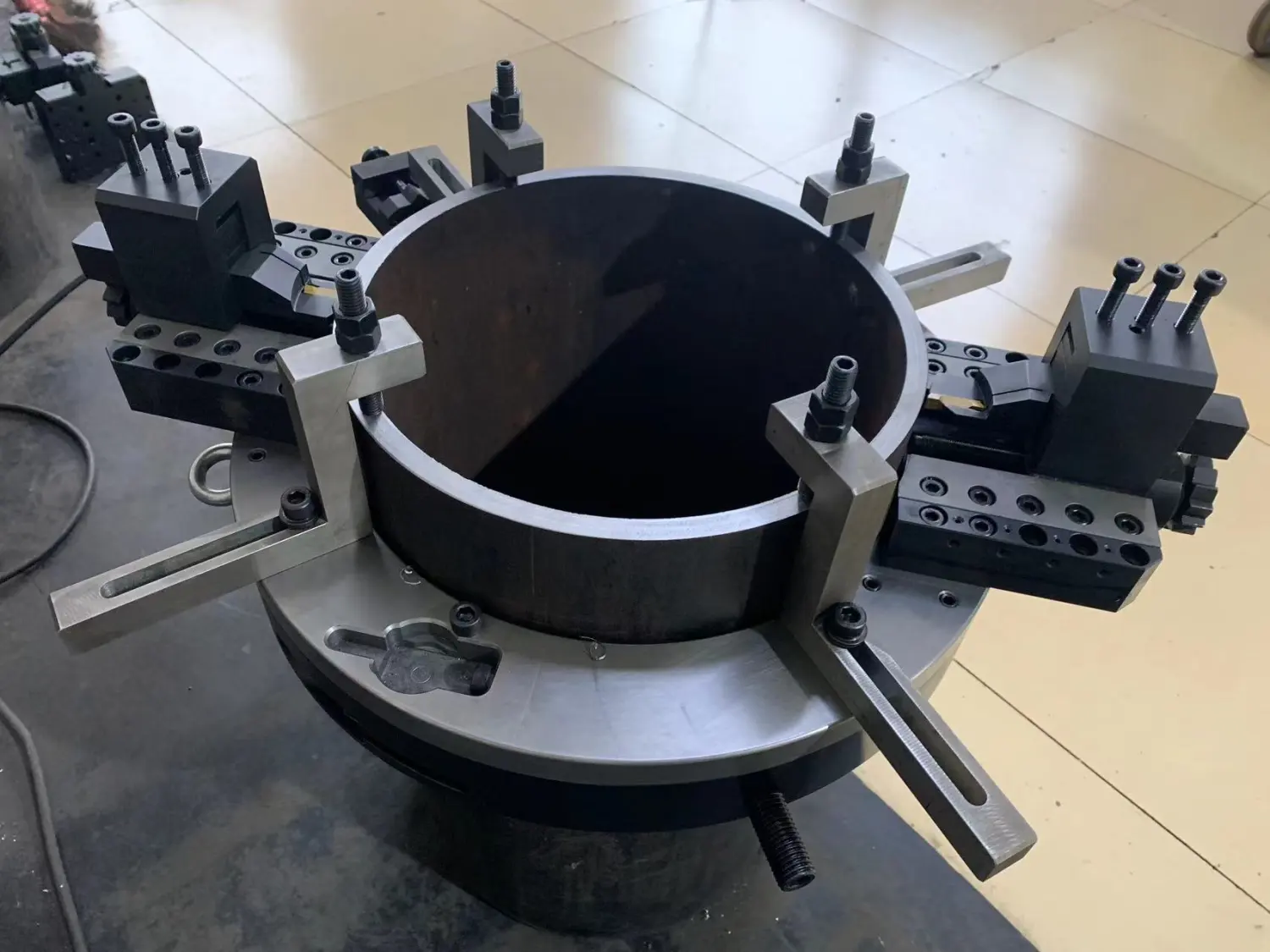

The above is the plan we submit:

1.  Use the carbide inserts and tool holder,  is economical than the HSS tool. Inserts width 8mm and 6mm

2. Make 4 support legs lifting the machine, in order to easy control the length of A before the machine mount on the pipe tightly.

3. Use the different thickness spacer adjust the height of the inserts.

For more information, please contact us freely.

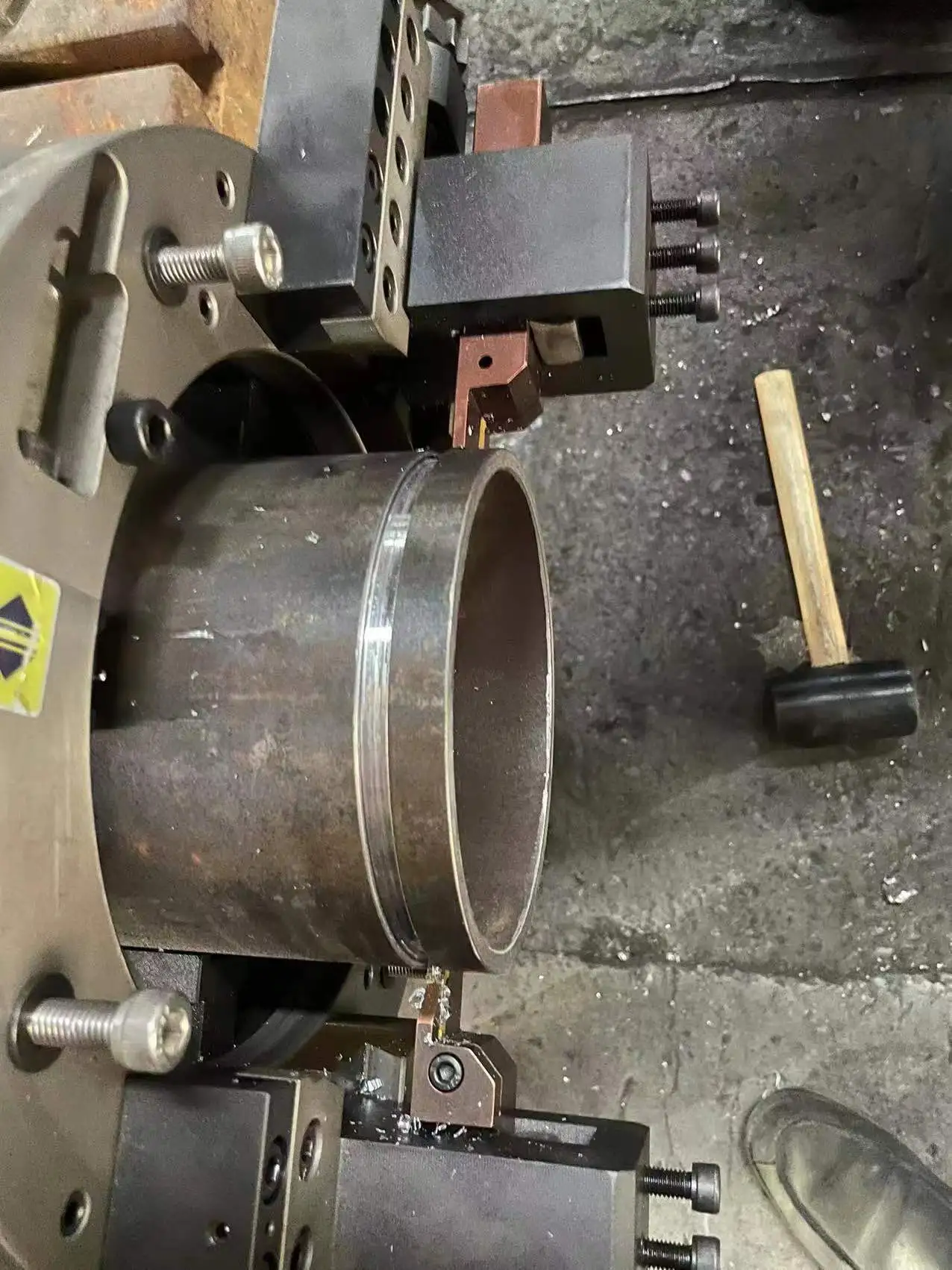

The above picture shown the test run in our factory.

Till now we supplied 6 units groove cut machines to them, all works very well.

Today we got the same inquiry from Indonesia, we’d like to present the same plan to them.

Reliable quality and service bring customers trust, more and more users choose NODHA.

We will continue to serve more clients all over the world.
