Tube OD covers:
BH40: 6.35-38.1mm
BH80: 19.05-76.2mm
BH118: 38.1-114.3mm
BH170: 50.8-165.2mm
Tube OD covers:
BH5: 3.175-15.875mm
BH10: 6.35-25.4mm

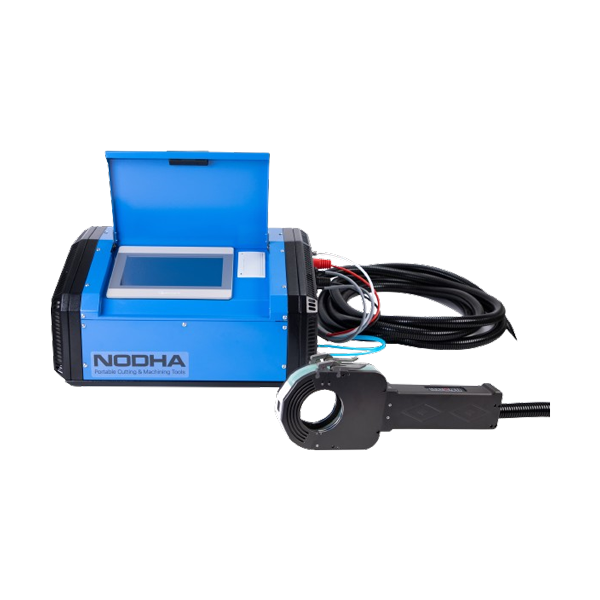

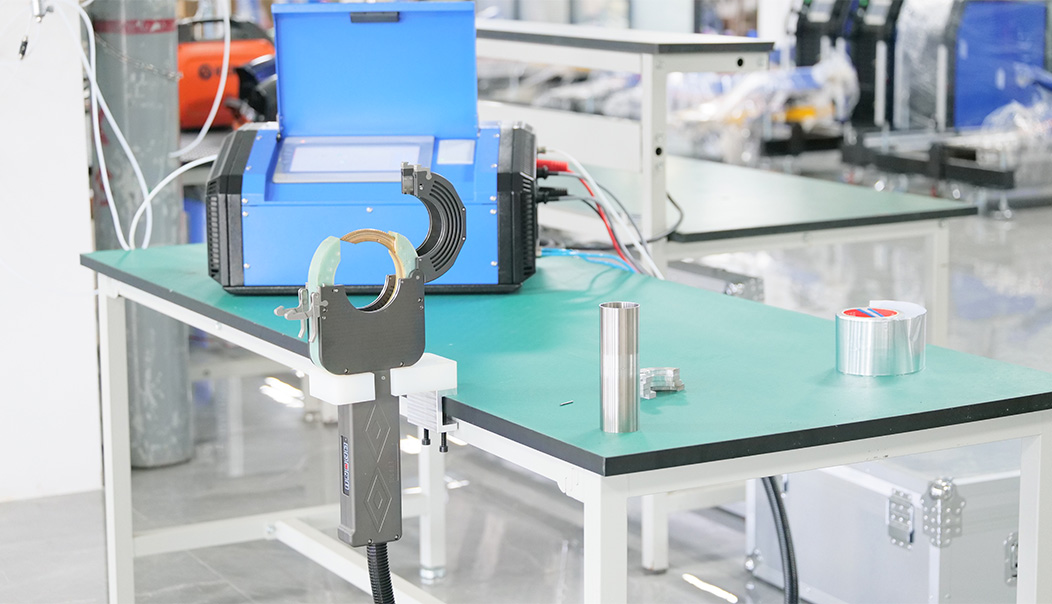

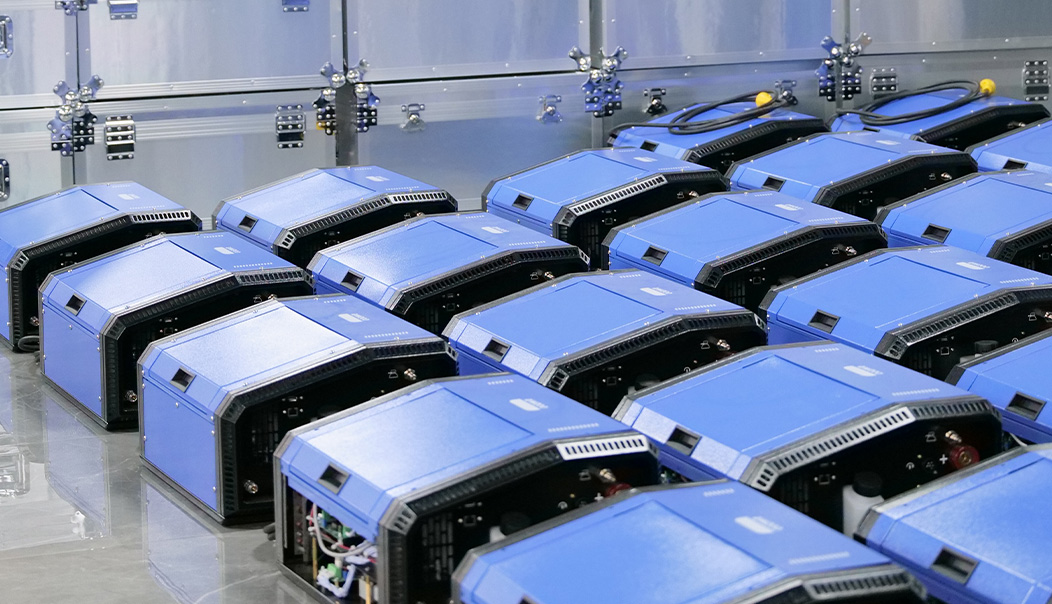

P200 digital welding power source is an automatic program-controlled welding power source. The welding power source adopts the new inverter power supply and control technology in the welding field, with the 10″ color touch screen as the human-machine interface, which is advanced, digital, easy to operate, intelligent, expandable, and reliable. The power supply provides precise control of current, rotation and shielding gas, centrally sets and stores various functional parameters in all-position welding, and distributes synchronous and precise control. The power supply is specially designed and manufactured for thin walled tubes/tubes. It can be used with all BH series closed chamber welding heads. Mainly used in chemical, food, medicine, Semi-conductor, various heat exchangers and other industries.

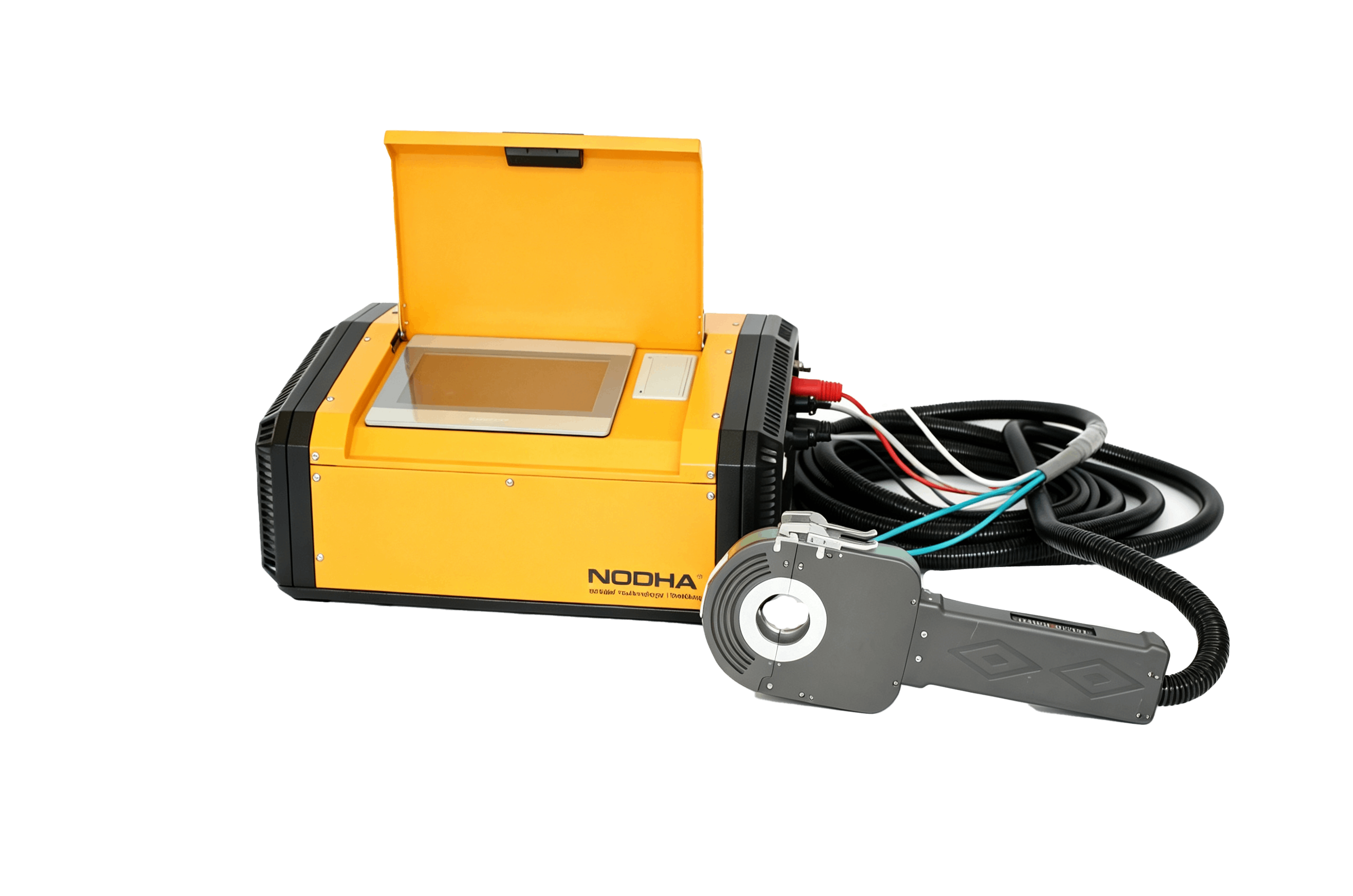

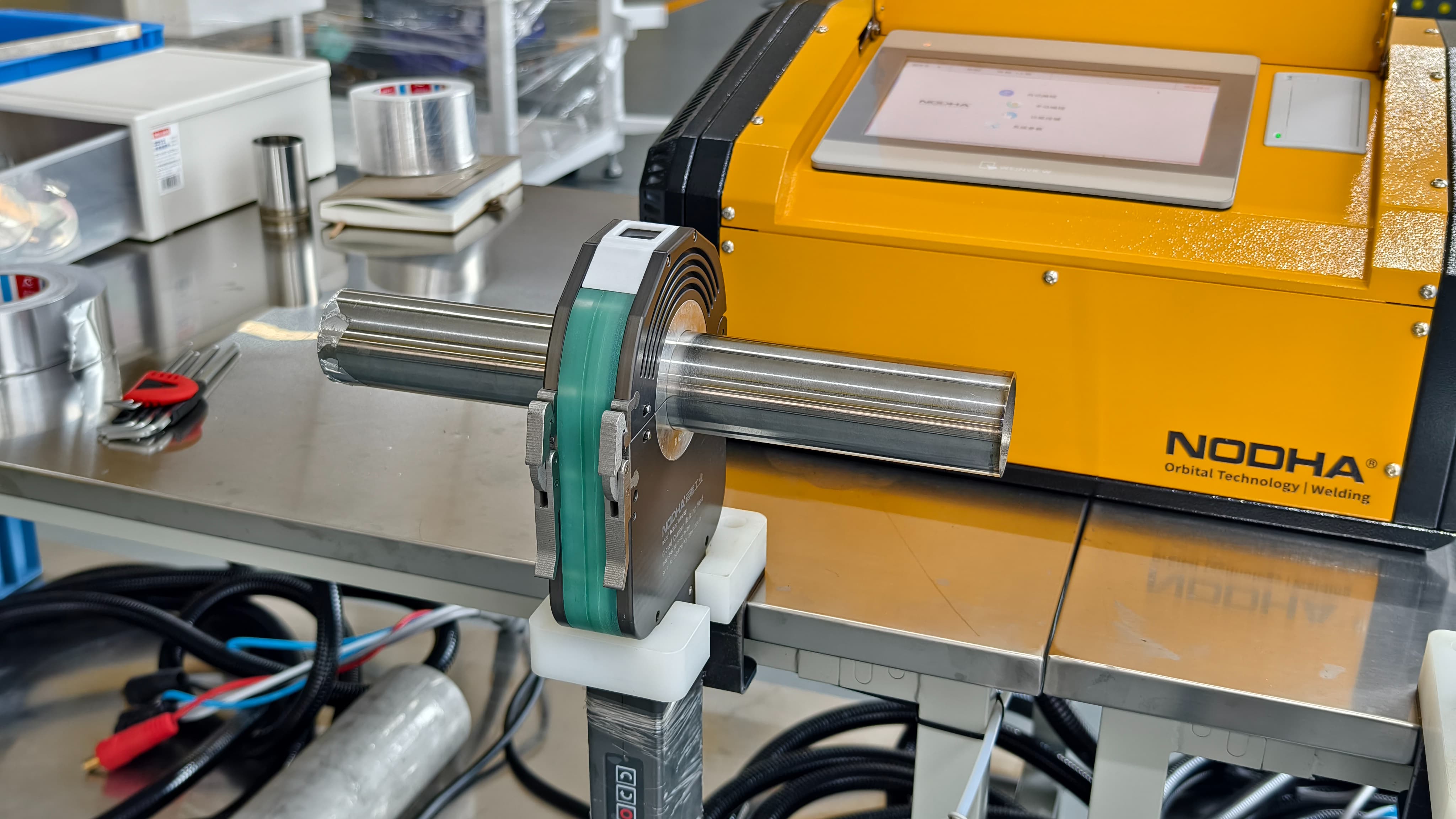

Orbital Tube and Pipe Welding Power Source
P200 digital welding power source is an automatic program-controlled welding power source. The welding power source adopts the new inverter power supply and control technology in the welding field, with the 10″ color touch screen as the human-machine interface, which is advanced, digital, easy to operate, intelligent, expandable, and reliable. The power supply provides precise control of current, rotation and shielding gas, centrally sets and stores various functional parameters in all-position welding, and distributes synchronous and precise control. The power supply is specially designed and manufactured for thin walled tubes/tubes. It can be used with all BH series closed chamber welding heads. Mainly used in chemical, food, medicine, Semi-conductor, various heat exchangers and other industries.
Performance
Function of automatic calculation of various welding parameters, which can easily realize the automatic welding process parameter matching of thin-walled pipes and tubes
With parameter library, it can calculate and generate welding programs for different pipe diameters and wall thicknesses automatically
With water detection and gas detection function
Perfect fault detection, directly display the cause of the fault
During the welding process, the welding parameters of current and speed can be adjusted at any time to meet the special requirements of certain welds
The power supply has the functions of software remote upgrade and U disk upgrade, and has offline programming function
Main Component
Control System | Program controlled wedling power source software V1.0 |
Touch Screen | WEINTEK HIM, Taiwan |
PLC control module | SIEMENS PLC, Germany |
Inverter | Standard: Self-develop. Or ewm, Germany for option |
Control Relay | OMRON 2662201, Japan |
Power Switch | TAYEE ZW42A2, Shanghai |
Water Pump | CEME WED-3510(220V), Italy |
Drive Motor | Standard: SHA YANG YE DM300264, Taiwan. Or maxon, Swiss for option |
Water/Gas quick Couple | LEGRIS 21KBTF04MFN, Germany |
Control cable & Jacket | HELUKABEL, Germany |
Control Plug | TE AMP, U.S. |
Product Information | File Type | File Size | Date | |
---|---|---|---|---|
Closed Head Orbital Welding 2024 | 2.93MB | 2024-07-24 | Download |
