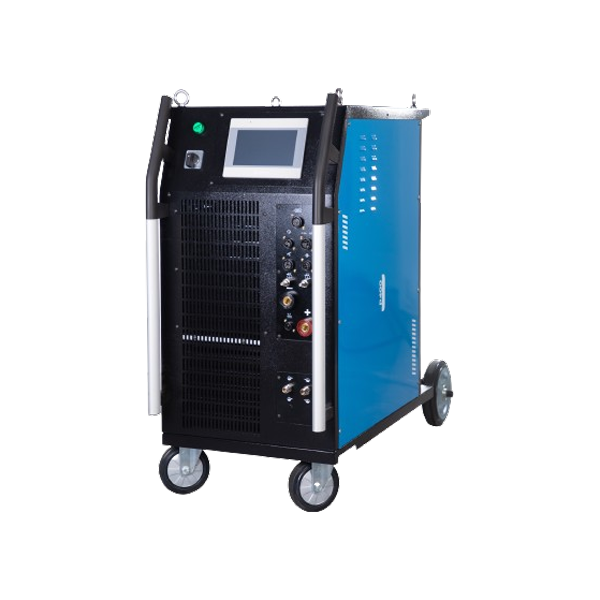

Power source P400
Tube OD: Dia.8-32mm
Wire Dia.: 0.8/1.0mm
Weight: 13kgs
Power source P400

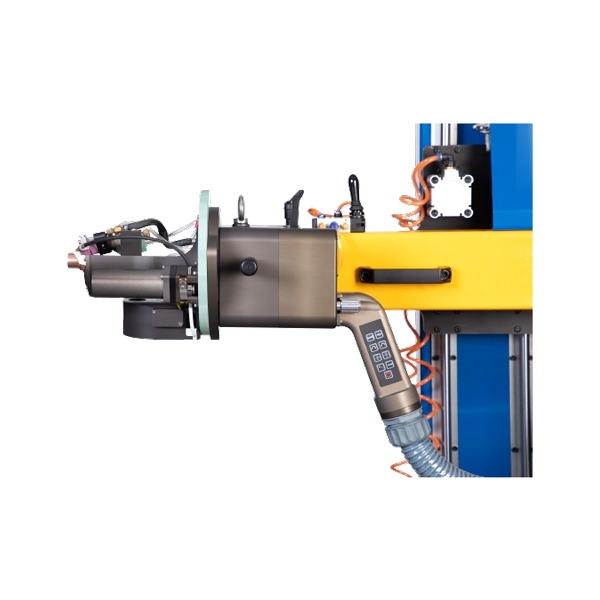

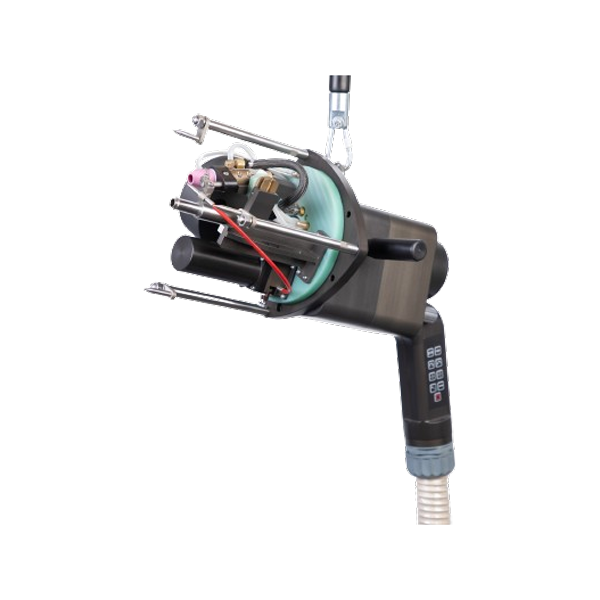

Tube OD: Dia.12-60mm, equips welding manipulator + localizer
Dia.19-60mm, equips spring balancer + collet
Option: Expand to dia.108mm, equips spring balancer +collet
Wire Dia.: 0.8/1.0mm ; Weight: 13kgs
Power Type: Inverter
Welding Current: 5-400A
Power Supply: 380V+/-10% 3PH 50/60HZ
Cooling: Water

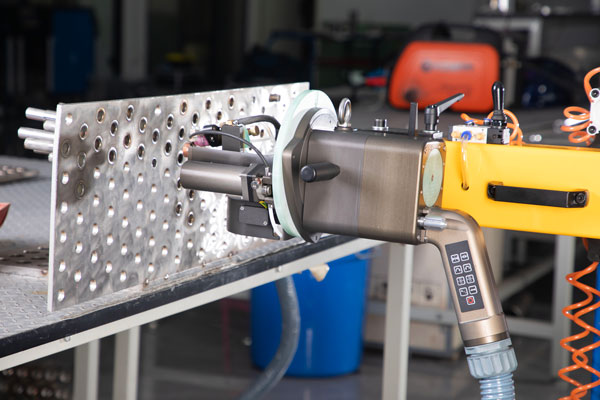

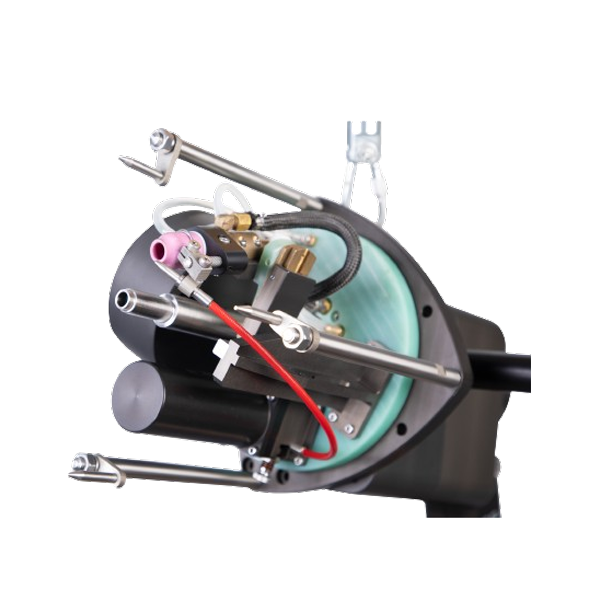

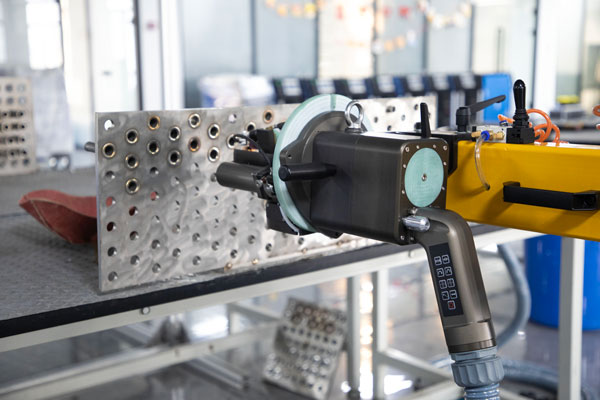

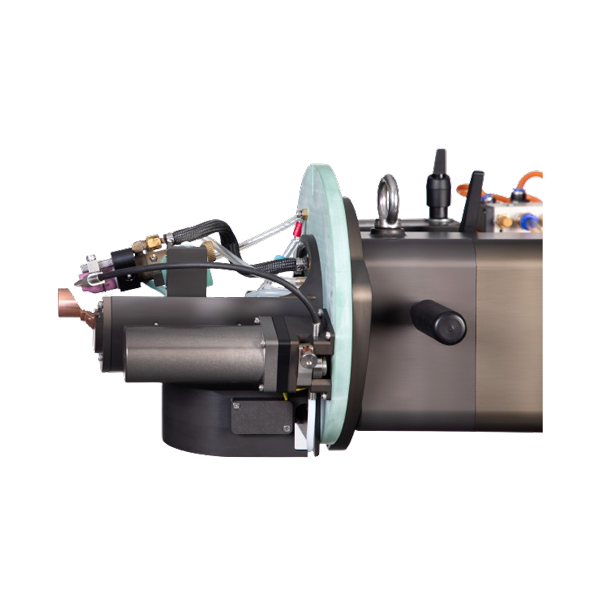

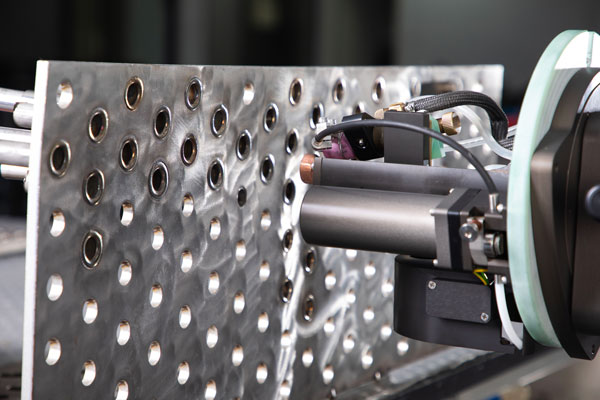

NODHA orbital tube and pipe welding machine is designed to wherever very high quality requirements are placed on weld. These requirements are not only limited to strength or X-ray safety, but also to the shape of the joint. For many users, a flat and even root, which can be achieved with low roughness, is the main criterion for using this method.
The welding power supply for orbital welding consists of several integrated subunits, each with specific functions:
One or two power inverters are used to provide welding current, which is used to heat the filling wire in the case of TIG hot wire welding.
For more information, please download the catalog or consult us.
Orbital Tube and Pipe Welding Power Source

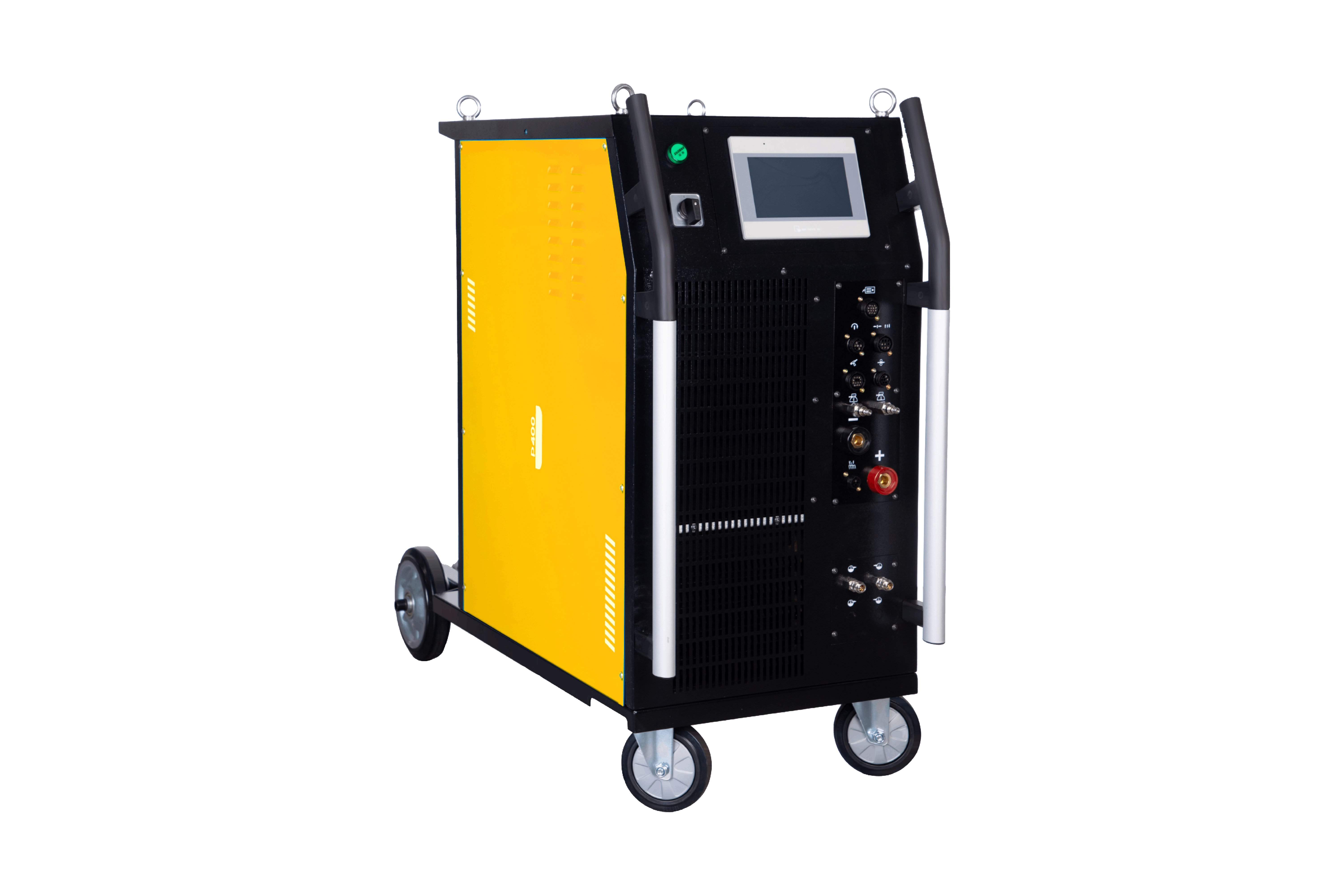

P200 digital welding power source is an automatic program-controlled welding power source. The welding power source adopts the new inverter power supply and control technology in the welding field, with the 10″ color touch screen as the human-machine interface, which is advanced, digital, easy to operate, intelligent, expandable, and reliable. The power supply provides precise control of current, rotation and shielding gas, centrally sets and stores various functional parameters in all-position welding, and distributes synchronous and precise control. The power supply is specially designed and manufactured for thin walled tubes/tubes. It can be used with all BH series closed chamber welding heads. Mainly used in chemical, food, medicine, Semi-conductor, various heat exchangers and other industries.
Performance
Function of automatic calculation of various welding parameters, which can easily realize the automatic welding process parameter matching of thin-walled pipes and tubes
With parameter library, it can calculate and generate welding programs for different pipe diameters and wall thicknesses automatically
With water detection and gas detection function
Perfect fault detection, directly display the cause of the fault
During the welding process, the welding parameters of current and speed can be adjusted at any time to meet the special requirements of certain welds
The power supply has the functions of software remote upgrade and U disk upgrade, and has offline programming function
Main Component
| Control System | Program controlled wedling power source software V1.0 |
| Touch Screen | WEINTEK HIM, Taiwan |
| PLC control module | SIEMENS PLC, Germany |
| Inverter | Standard: Self-develop. Or ewm, Germany for option |
| Control Relay | OMRON 2662201, Japan |
| Power Switch | TAYEE ZW42A2, Shanghai |
| Water Pump | CEME WED-3510(220V), Italy |
| Drive Motor | Standard: SHA YANG YE DM300264, Taiwan. Or maxon, Swiss for option |
| Water/Gas quick Couple | LEGRIS 21KBTF04MFN, Germany |
| Control cable & Jacket | HELUKABEL, Germany |
| Control Plug | TE AMP, U.S. |
| Product Information | File Type | File Size | Date | |
|---|---|---|---|---|
| Tube to TubeSheet Welding 2024 | 2.26MB | 2024-07-24 |  Download |
