Boiler: ID-Mounted Pipe Beveler Application – Wuxi, China

I. Project Overview

Owner: Wuxi Boiler Pipeline Company

Construction Content: 4-inch boiler pipe inner diameter groove processing

Construction Location: Wuxi, China

Construction Time: December 2017

II. Equipment Configuration

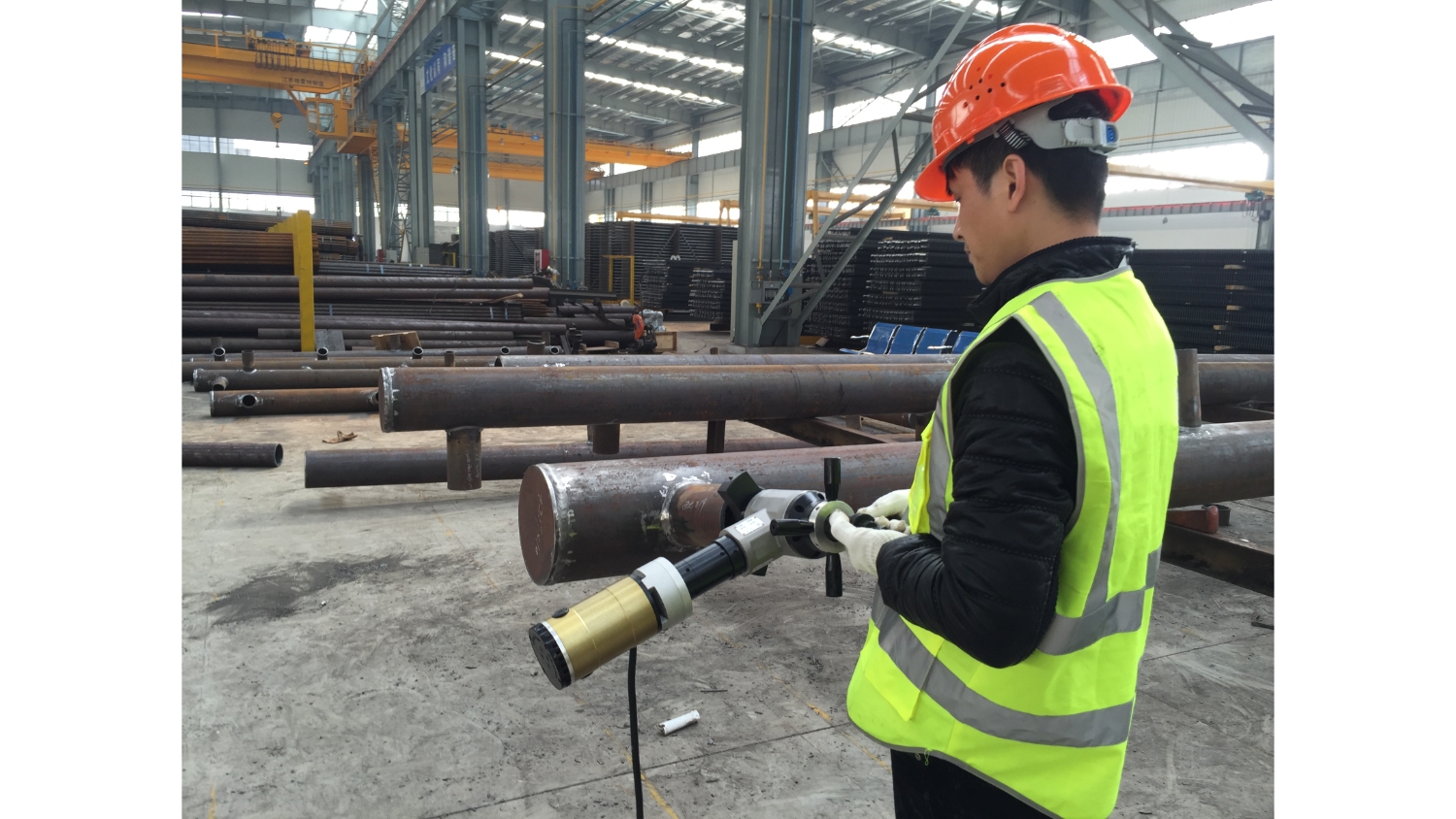

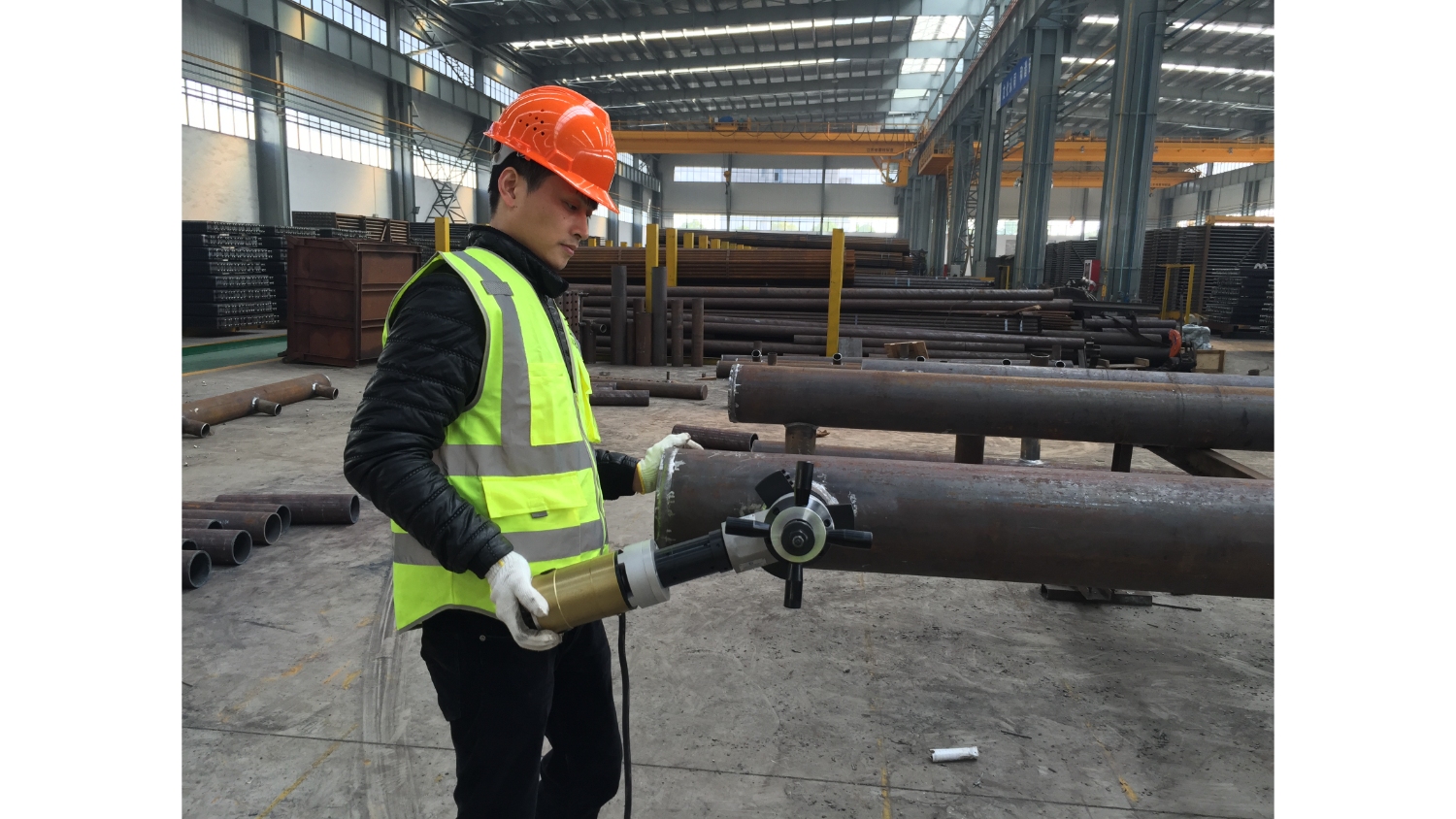

Model: IDE-120 inner diameter mounted pipe groove machine

Technical Features: multi-directional positioning capability, self-centering hydraulic clamp, compact design

III. Implementation Effect

Positioning error <0.3mm

Repeat positioning accuracy ±0.15mm

Groove straightness deviation ≤1mm/m

IV. Customer Value

Solve the problem of narrow space operation that traditional external clamping equipment cannot cope with

Comprehensive labor cost reduction
