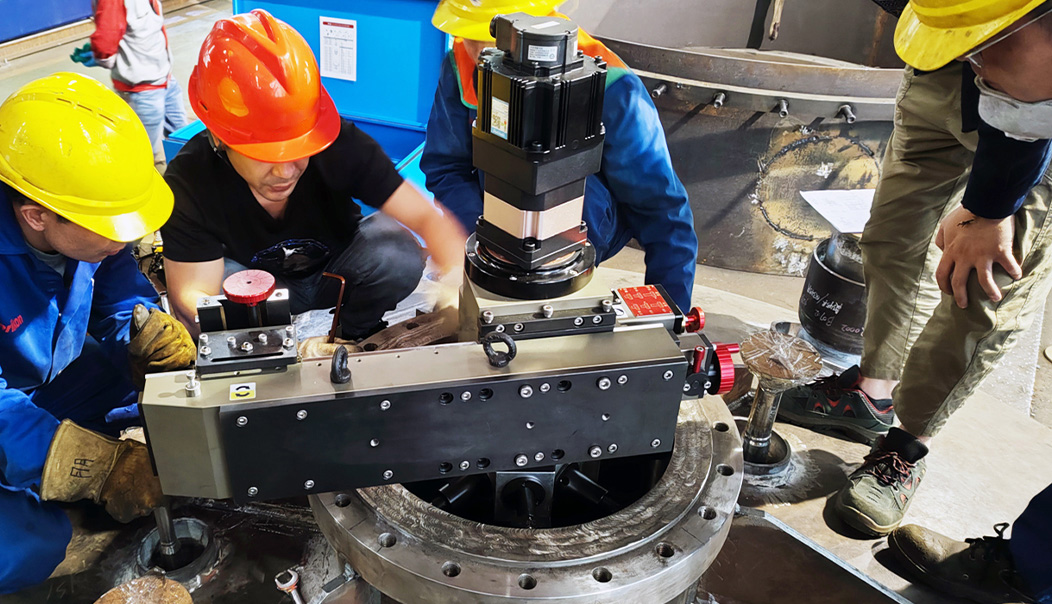

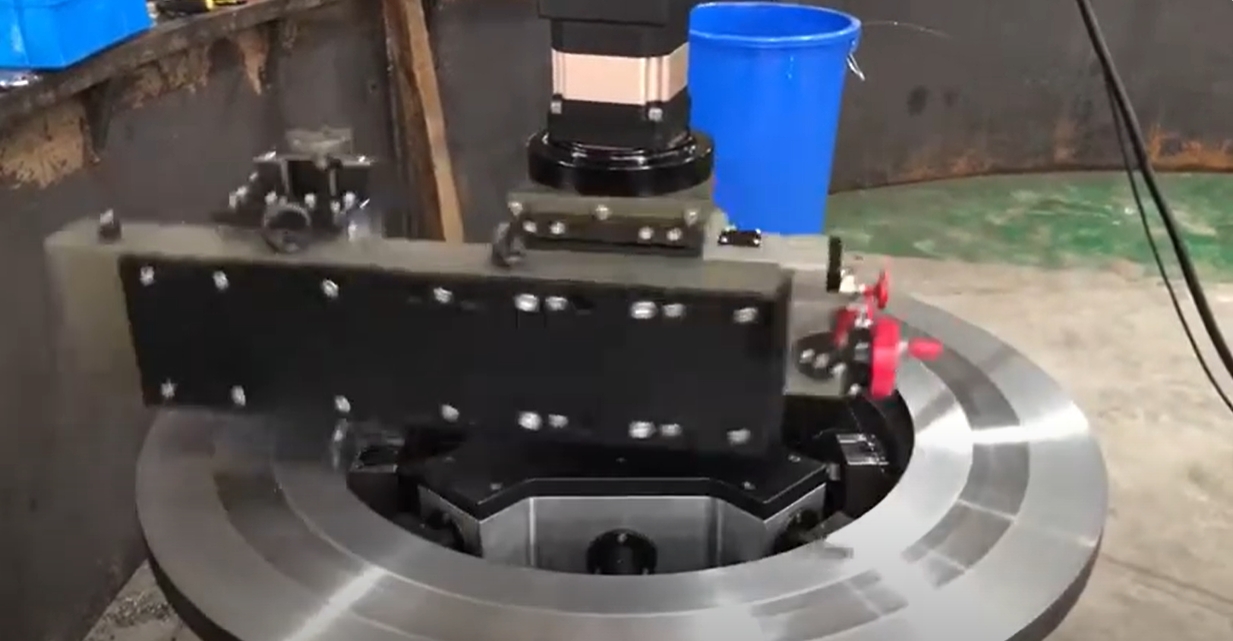

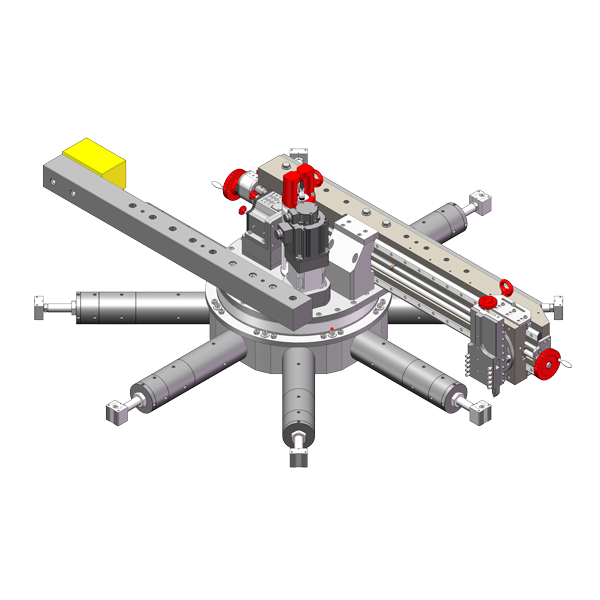

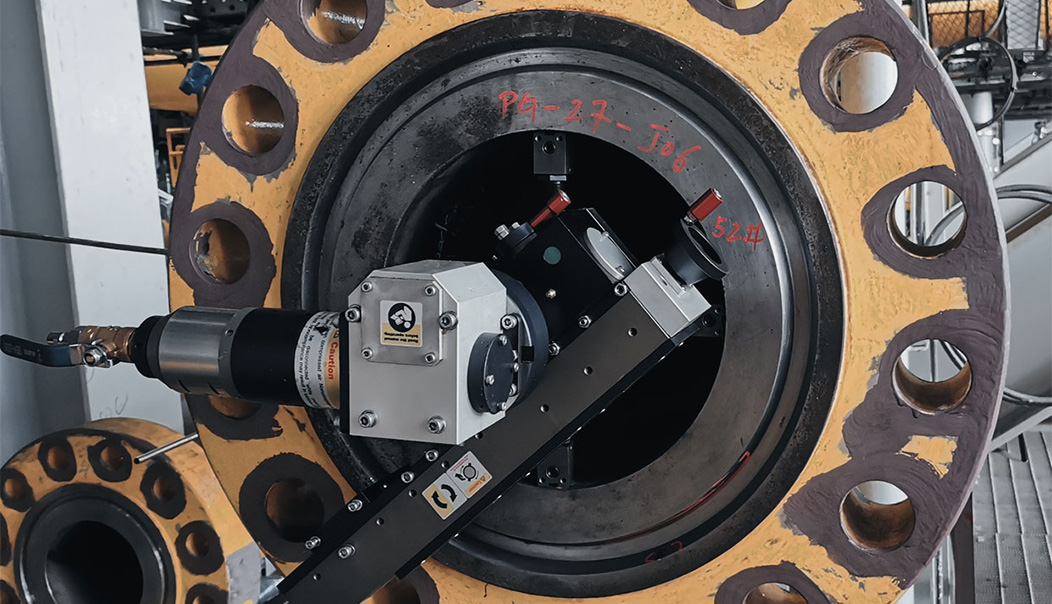

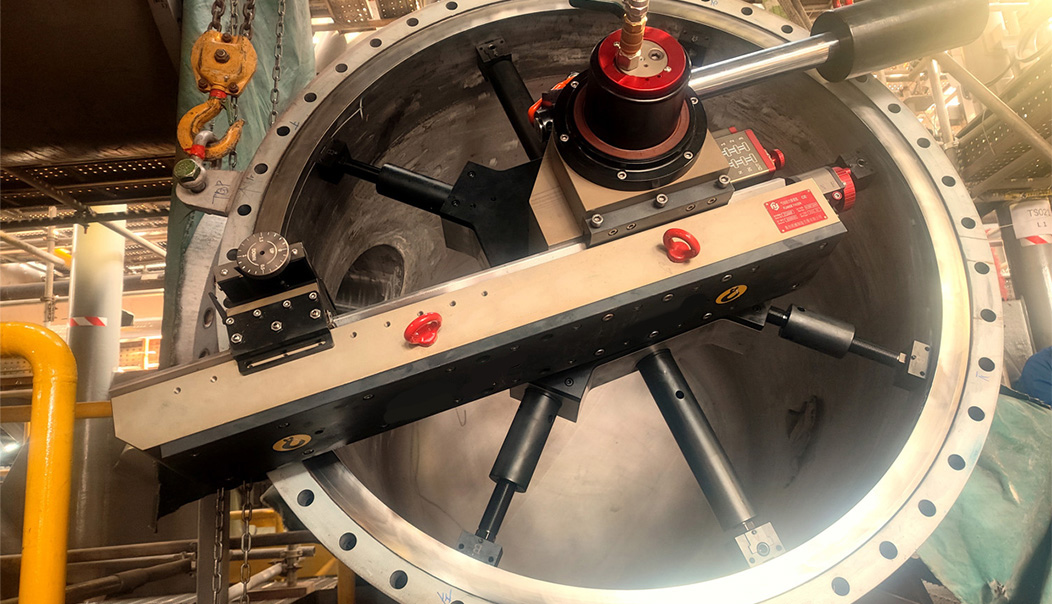

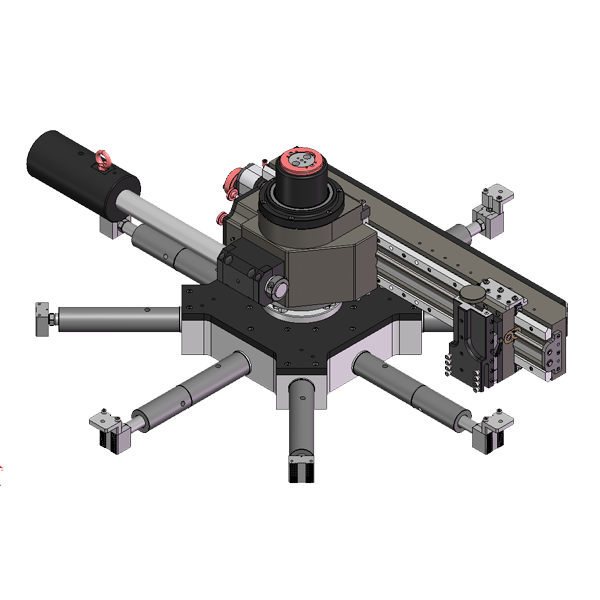

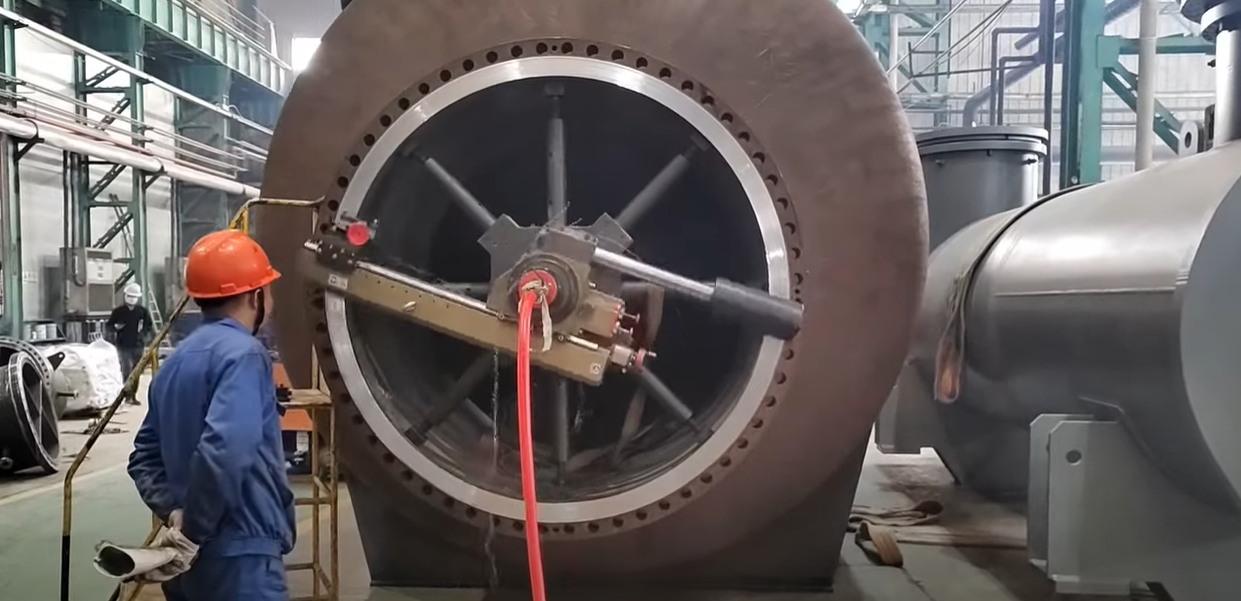

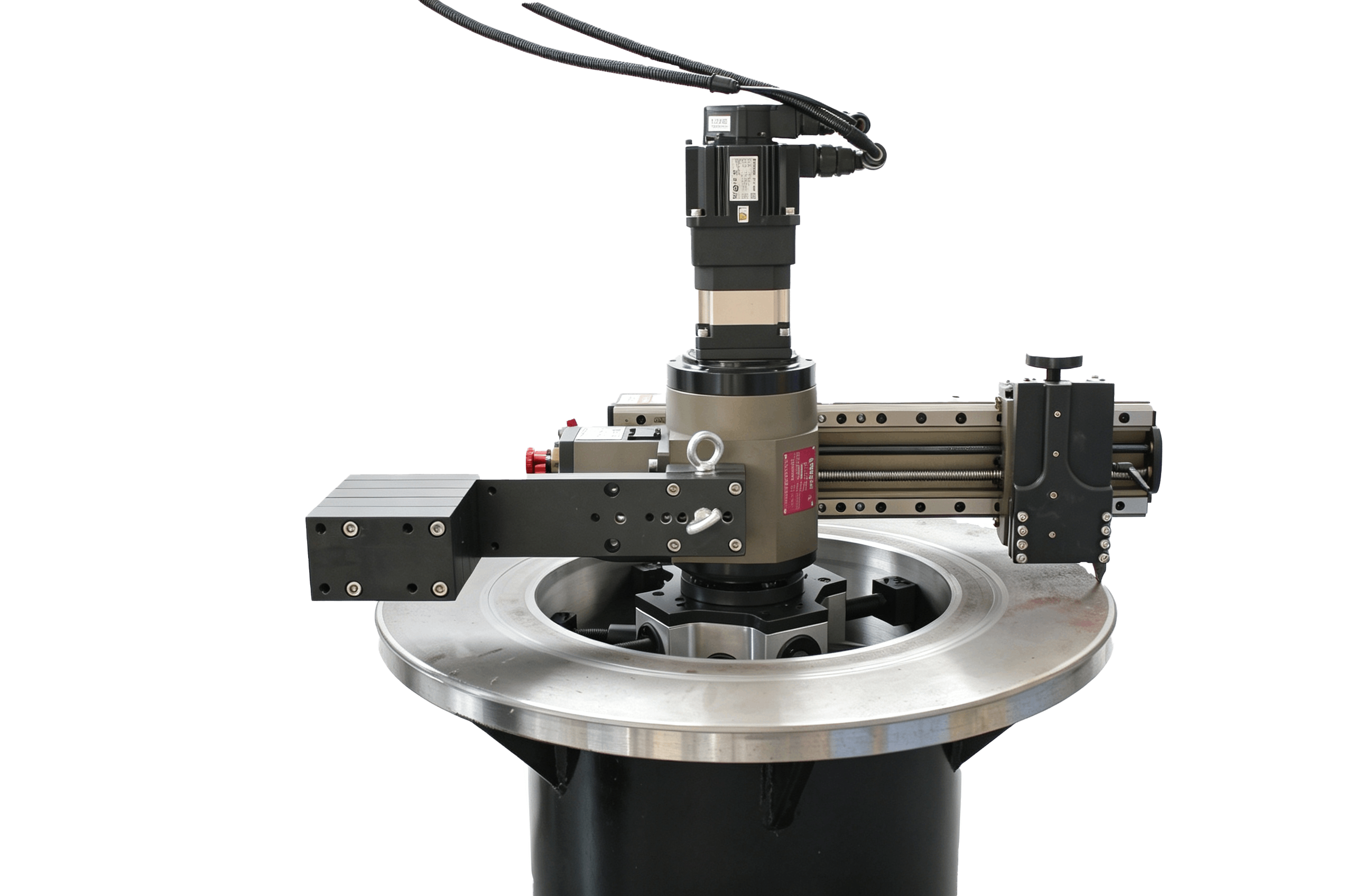

FI2000 ID-Mounted flange facing machine, has electric and pneumatic type for option. Air type adopts 4HP MODEC air motor. Electric type adopts 3Kw Panasonic servo motor.
Facing range: 26.34" upto 80" (670-2032mm)
Clamping range: 31.1" upto 74.80" (790-1900mm)
Tool post Travel: 4" (102mm)
No.of Feed setting: 6

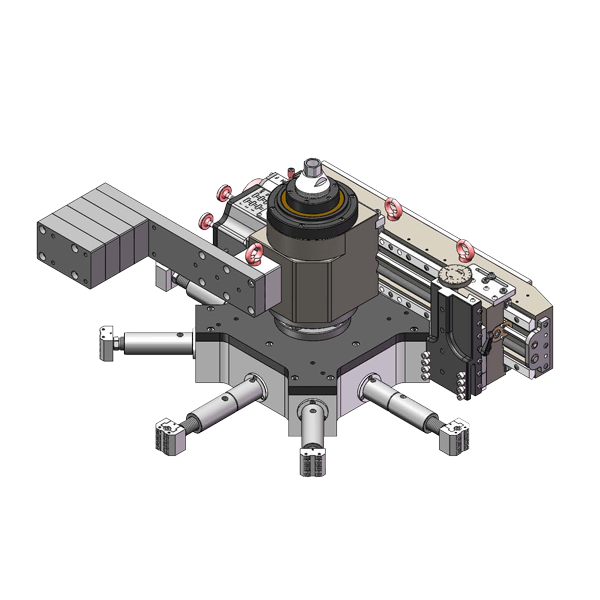

FI1500 ID-Mounted flange facing machine, has electric and pneumatic type for option. Air type adopts 4HP MODEC air motor. Electric type adopts 3Kw Panasonic servo motor.
Facing range: 12.6″ upto 60″ (320-1500mm)
Clamping range: 11.4″ upto 57.08″ (290-1450mm)
Tool post Travel: 4″ (102mm)
No.of Feed setting: 6
FI1000 ID-Mounted flange facing machine, has electric and pneumatic type for option. Air type adopts 2.3HP MODEC air motor. Electric type adopts 1.5Kw Panasonic servo motor.
Facing range: 6″ upto 40″ (153-1000mm)
Clamping range: 5.71″ upto 35.82″ (145-910mm)
Tool post Travel: 4″ (102mm)
No.of Feed setting: 6
FI700 ID-Mounted flange facing machine, has electric and pneumatic type for option. Air type adopts 1.47HP our own air motor, which used on clamshell for 20 years. Electric type adopts 1Kw Panasonic servo motor.
Facing range: 4.73″ upto 26″ (120-660mm)
Clamping range: 3.55″ upto 26″ (90-660mm)
Tool post Travel: 1.97″ (50mm)
No.of Feed setting: 2 (Fine and Coarse)

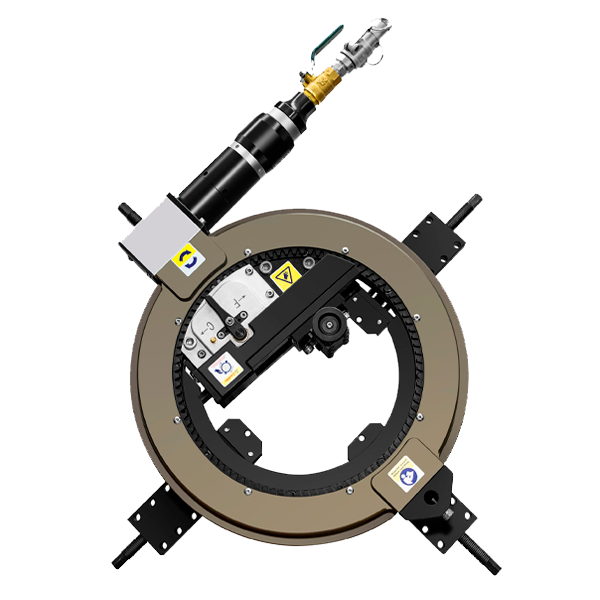

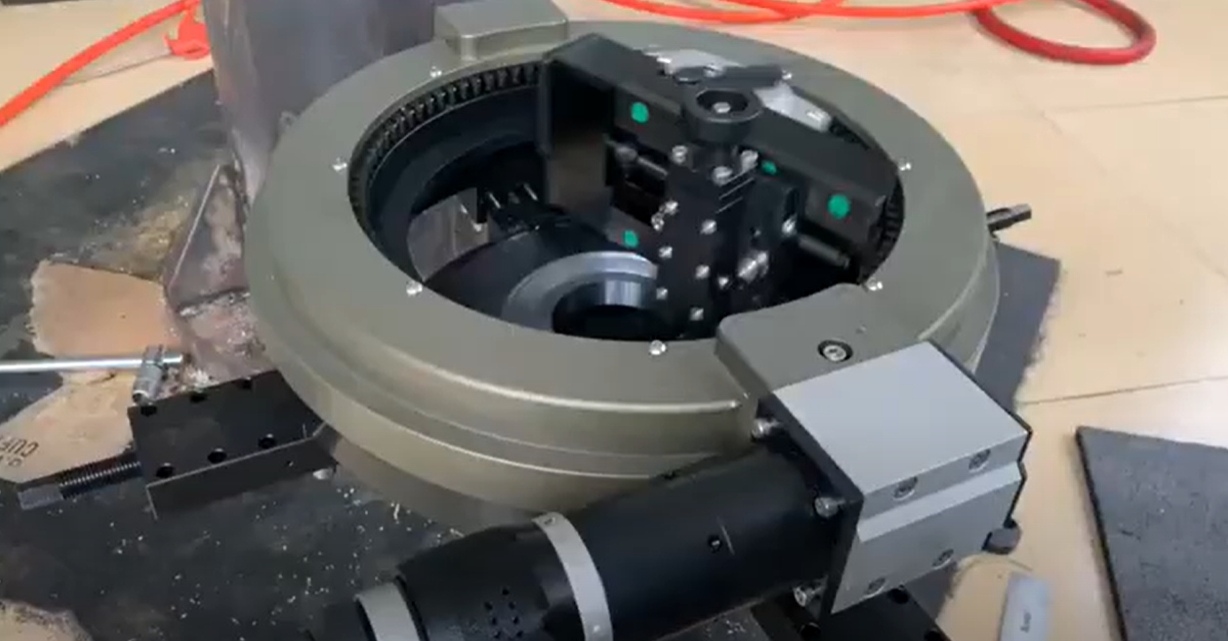

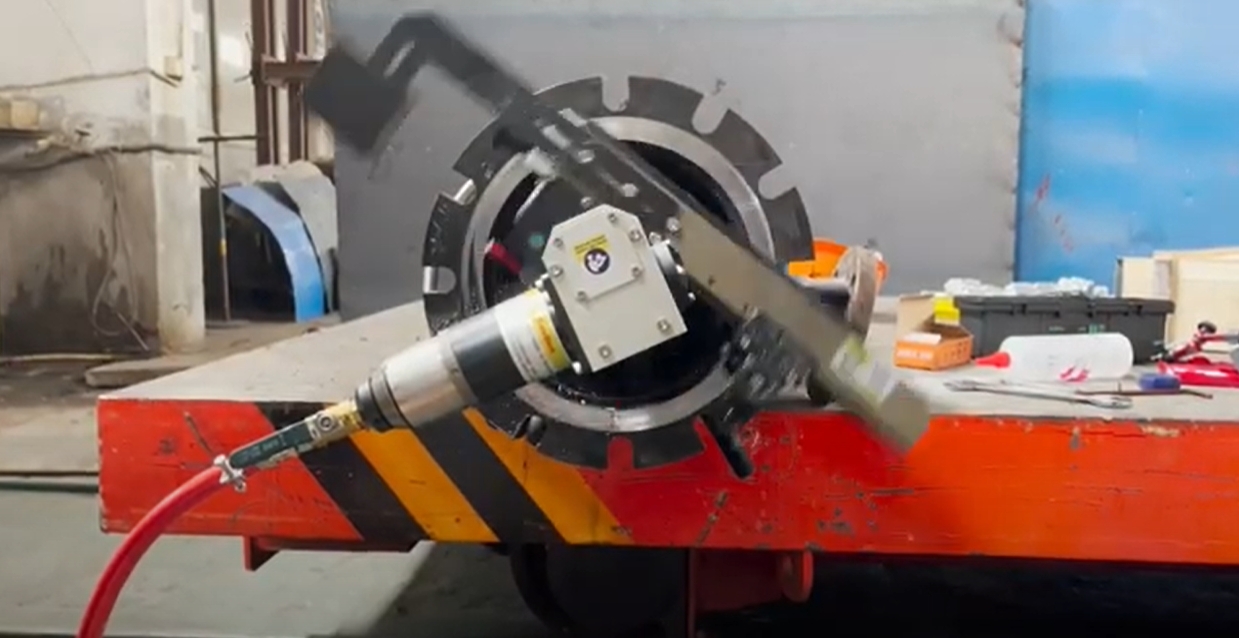

FE305 OD-Mounted flange facing machine, has electric and pneumatic type for option. Air type adopts our own air motor, which used on clamshell for 20 years. Electric type adopts 1Kw Panasonic servo motor.
Facing range: 0″ upto 12″ (0-305mm)
Clamping range: 2″ upto 17.72″ (50-450mm)
Tool post Travel: 1.57″ (40mm)
No.of Feed setting: 2 (Fine and Coarse)

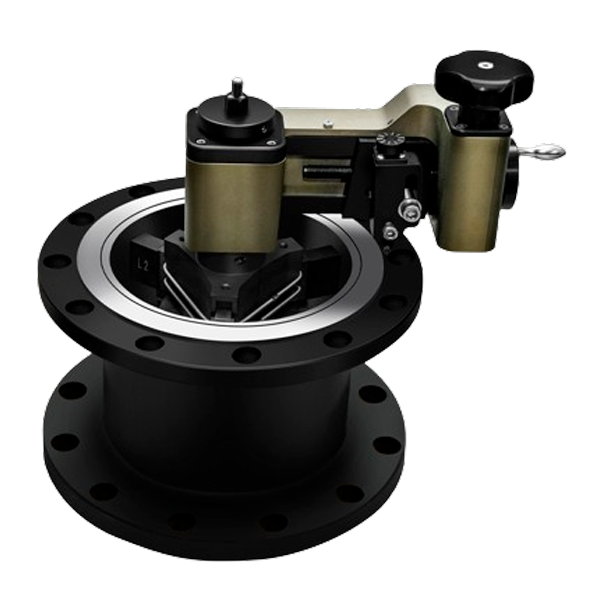

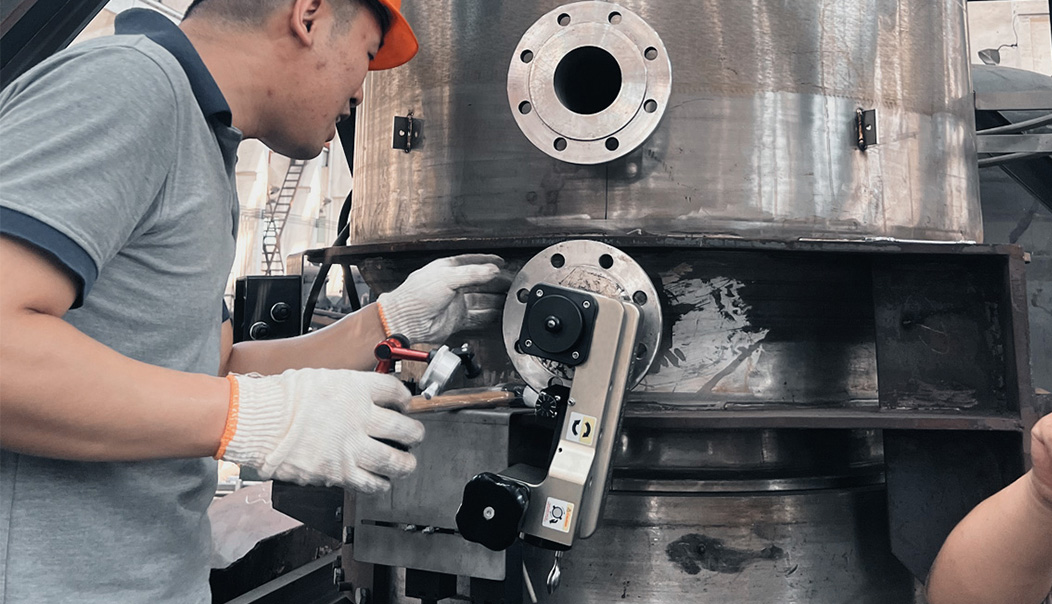

FI355M MINI flange facer, ideal for small size flange rush repair job, operated by manpower, no need air or electric.
Cover the range from 1.07″ upto 14″ (27.2-355.6mm)
Complete with 3 size of mounting chassis, ensure the stability during machining

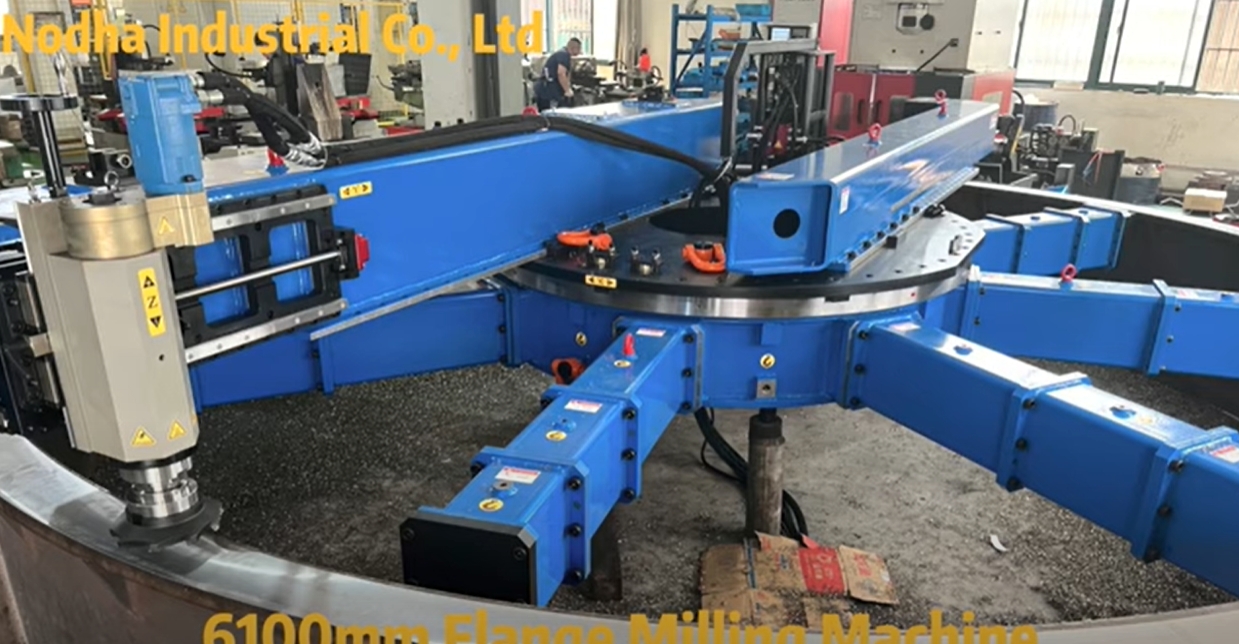

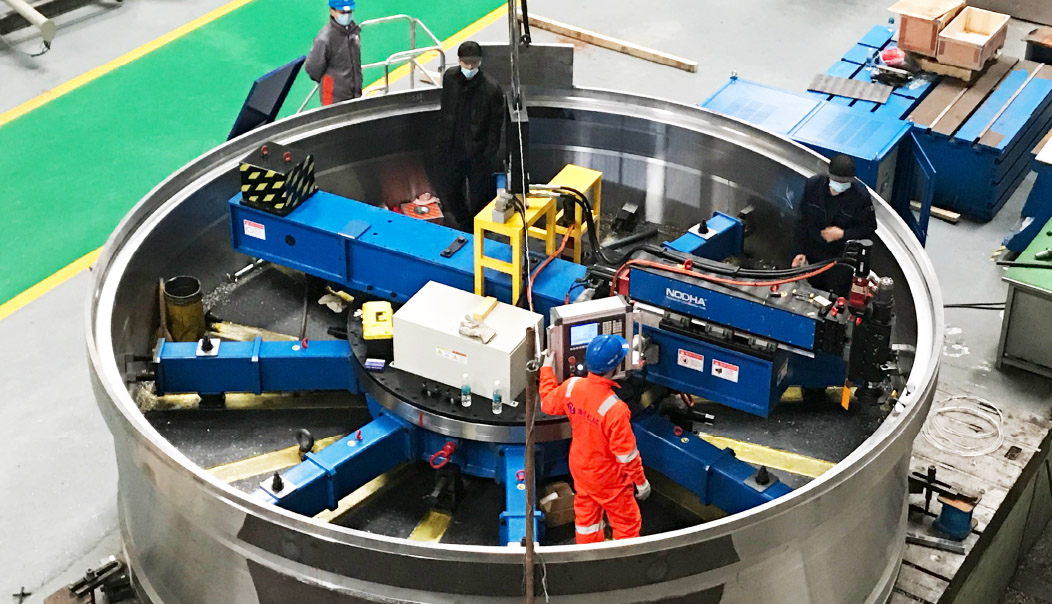

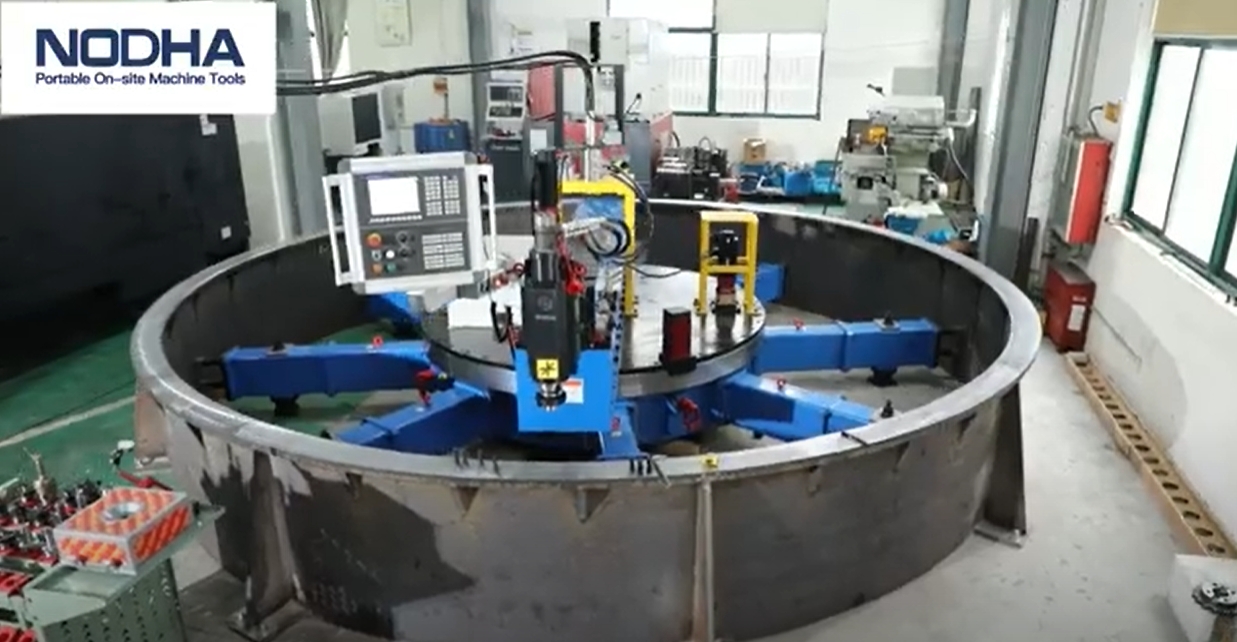

NODHA supply flange facing machines in a wide range of sizes, from small size manual flange facer up to large scale CNC flange milling machines. There are internal and external clamping type for option, and provide a variety of drive mode: manually, pneumatic operated, electric operated and hydraulic drive.
FI1000P, FI1500P and FI2000P adopts MODEC air motor from France. All size electric type adopts Panasonic servo motor.
For more information, please download the catalog or consult us.
Product Information | File Type | File Size | Date | |
---|---|---|---|---|
FM Flange Milling Machine | 1.29MB | 2024-07-24 | Download | |

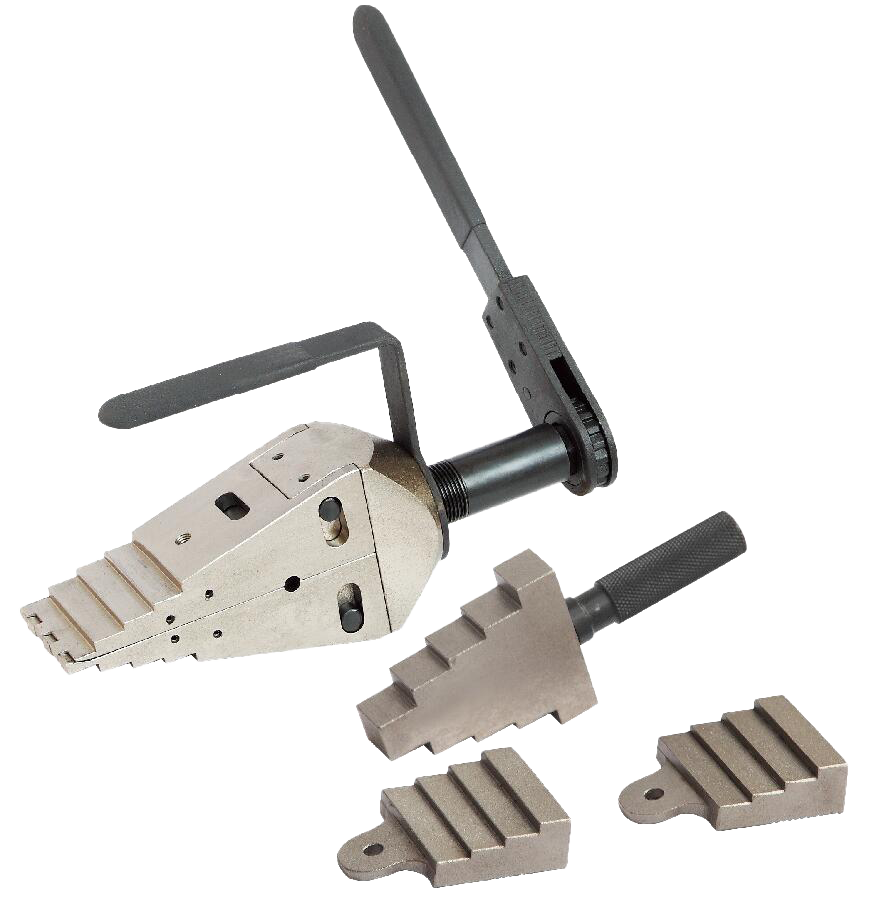

Flange Tools | 2.40MB | 2024-07-24 | Download | |
Flange Facing 2024 | 11.4MB | 2024-07-24 | Download | |
FI2000 Flange Facing Machine | 697KB | 2024-07-24 | Download | |
FI1500 Flange Facing Machine | 1.31MB | 2024-07-24 | Download | |
FI1000 Flange Facing Machine | 1.44MB | 2024-07-24 | Download | |
FI700 Flange Facing Machine | 1.25MB | 2024-07-24 | Download | |
FI355M Flange Facer | 1.28MB | 2024-07-24 | Download | |
FE305 Flange Facer | 1.25MB | 2024-07-24 | Download |
